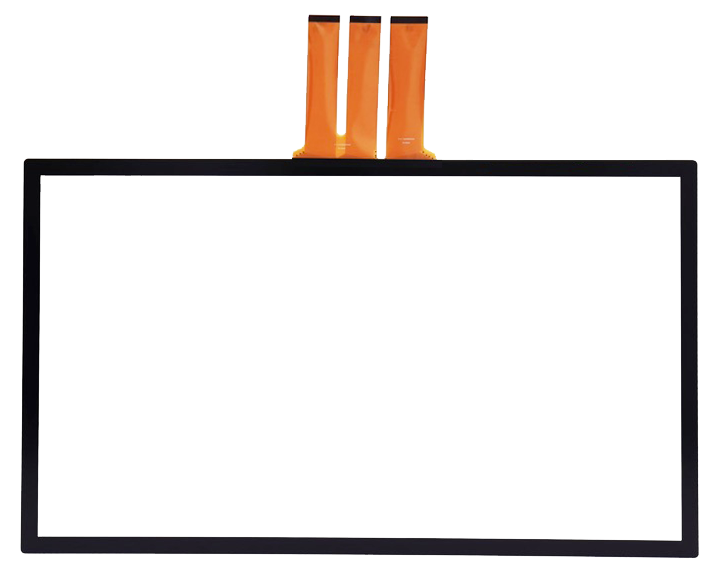

Projection Capacitive Touch Screen(PCAP)
MicroTouch Screen PCAP Systems Engineered for Multi-Touch Commercial Display Applications Introducing a more durable, scalable and easy-to-integrate multi-touch system that stands up to rugged industrial environments, makes retail brand experiences more robust and makes public exhibits more interactive.
The projected capacitive (PCAP) multi-touch systems deliver. Ideal for small format multi-touch display applications, this system offers display integrators and equipment manufacturers a reliable, easy-to-integrate multi-touch system with no bulky bezels. The system’s glass-to-edge design delivers the same modern design aesthetic users have come to expect from today’s personal smart phones and tablets.
- Exhibits and Museums • Self Service
- Assisted Selling • Retail Brand Experience
- Industrial Machinery and Heavy Equipment
- Gaming • Point of Information Displays
Specifications
Display Size Supports 5″ to 65″ (Can be customized according to customer requirements)
Touch Inputs 10 touches with palm rejection
Input Method Finger, thin gloves
Accuracy >99% of true position
Resolution 4K x 4K
Linearizion Inherently Linear (only video alignment needed)
Tail Connection Solderless design
Light Transmission >88%
Communication USB HID Digitizer
Dimensions TBD
Operating Current TBD
Power Connection USB I2C Serial
Connectors ZIF (touchscreen side), Molex (USB COM)
Touch Refresh Rate Greater than 100 Hz (<10ms)
Touch Resolution 16K x 16K
Obstruction Withstands most surface contaminants
Operating Temperature 0°C to +50°C (up to 90% RH from 0°C to +35°C)
Storage Temperature -10°C to +70°C (up to 90% RH from 0°C to +35°C (above +35°C, see specification))
Native Driver Support Windows 11 / 10 /8 / 7 / Vista / Linux / Mac / Kylin OS / UOS
