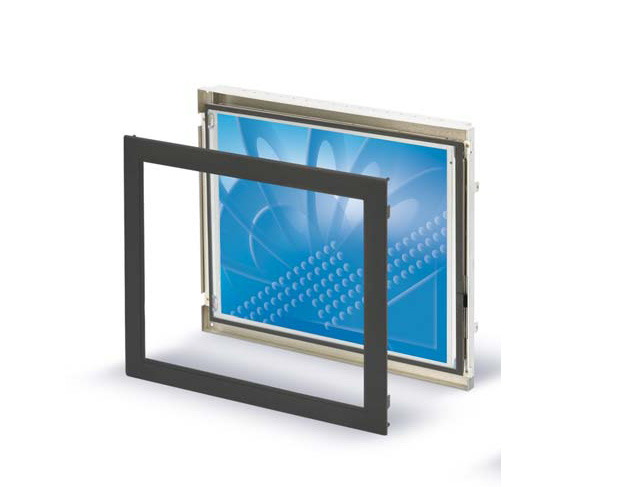

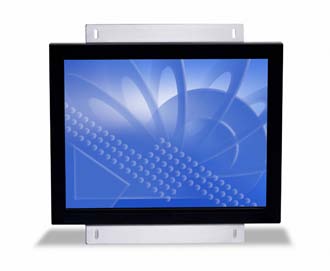

15.0 Open Frame Touch Display — product image
Open Frame Touch Display

15.0" C1500SS Open Frame Touch Display

15.0 Open Frame Touch Display 11-71315-225-01

Key features

  • TFT, 1024 x 768
  • Multi touch screen
  • VGA input
  • Wide operating temperature
  • High brightness

Touch types

  • Project Capacitive Touch Screen(PCAP)
  • Infrared Touch Screen(IRTS)
  • Resistive Touch Screen(RTS)

Overview

15.0 Open Frame Touch Display

Panamich’s open frame touchscreens deliver the commercial-grade durability and reliable performance needed for high-traffic environments. Designed for seamless integration into kiosks, gaming machines, and industrial equipment, these interactive displays offer consistent touch response, flexible mounting options, and a range of touchscreen technologies.

The Panamich 15.6-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start. The C-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Specifications

Functional Specifications



Display Details

Series

C Series

Color

Black

Active Display Area

304.13(W)×228.10(H) mm

LCD Technology

Active matrix TFT LCD

Pixel Pitch (H x V)



0.2970 x 0.2970



Aspect Ratio

4:3

Native Resolution

1024 * 768

Other supported resolutions

800 x 600 56, 60Hz, 1024 x 768 60Hz,

Number Of Colors

16.7 million

Brightness (Typical)

LCD Panel: 400 nits; with Touch Panel: PCAP: 300 nits

Response Time (Tr + Tf) (Typical)

12 msec

Viewing Angle (Typical)

Horizontal: 85°/85° or 170° total; Vertical: 80°/80° or 160° total

Contrast Ratio (Typical)

1000:1

Touch Details

Touch screen Type

1-10 points with palm rejection

Touch Point Speed

<12 milliseconds

Input Type

Finger, thin glove    Operates with many of the    leading conductive styli and active pens

Light Transmission

<12 milliseconds

Accuracy

>99% of true position

Touch Refresh Rate

<10ms for up to 10

Product Details

On-Screen Display (OSD)

Accessible through switches along the bottom.

Controls: Menu, Up, Down, Select, Power

Settings:  Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness,

Recall Defaults, Information

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Touch input interface

USB Type B

Video input interface

VGA;HDMI

Power

Monitor input power connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter);

Monitor input power signal specifications: 12VDC +/- 5%; Adapter input voltage range: 100-240VAC, 50/60Hz;

Power Consumption (Typical with monitor + AC/DC adapter): ON: 28W; SLEEP: 0.45W; OFF: 0.38W

Power Consumption (typical)

Monitor only - ON: 12.76W, SLEEP: 1.33W, OFF: 0.30W

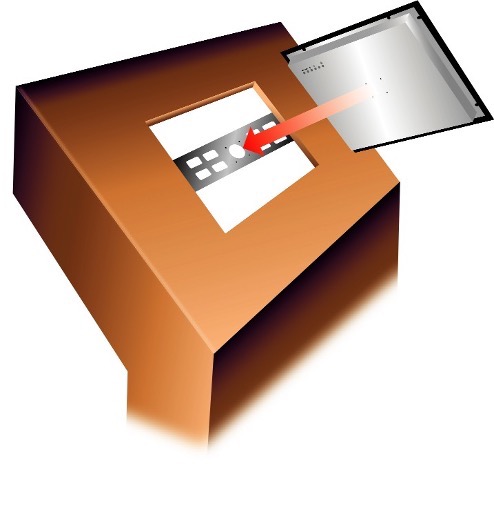

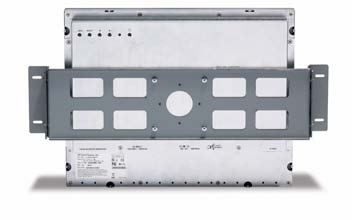

Mounting Options

VESA 4-hole 100mm mounting interface on rear of unit

Temperature

Operating: 0°C to 40°C / 32°F to 104°F; Storage: -20°C to 60°C / -4°F to 140°F

Humidity (non-condensing)

Operating: 20%-80%; Storage: 10%-95% (38.7° maximum wet bulb temperature)

Operating System Support

Windows 11 / 10 /8 / 7 / Vista / Linux /  Mac / Kylin OS / UOS

Dimensions (W x D x H)

Without Stand : 374.4 mm x 313.4mm x 44.5 mm

Shipping Box Dimensions

475mm x 420mm x 145 mm

Weight

Unpackaged:About7.4 kg; Packaged: About 12.8 kg

MTBF

50,000 hours demonstrated

Warranty

1 years

What’s in the Box

Touch monitor,  VGA cable, Touch USB cable,DC power adapter, EU Power cable

Resources

  • Data Sheet                                               Download

  • Dimensional Drawing                           Download

  • CAD Drawings                                         Download

  • 3D Module                                                  Download
