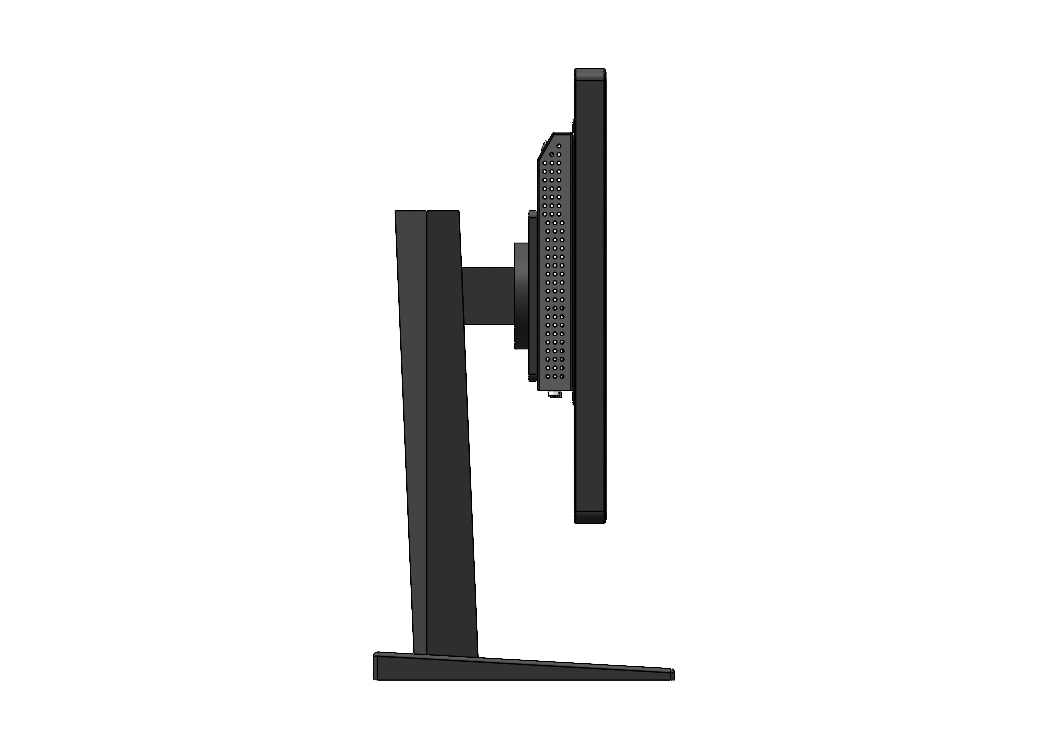

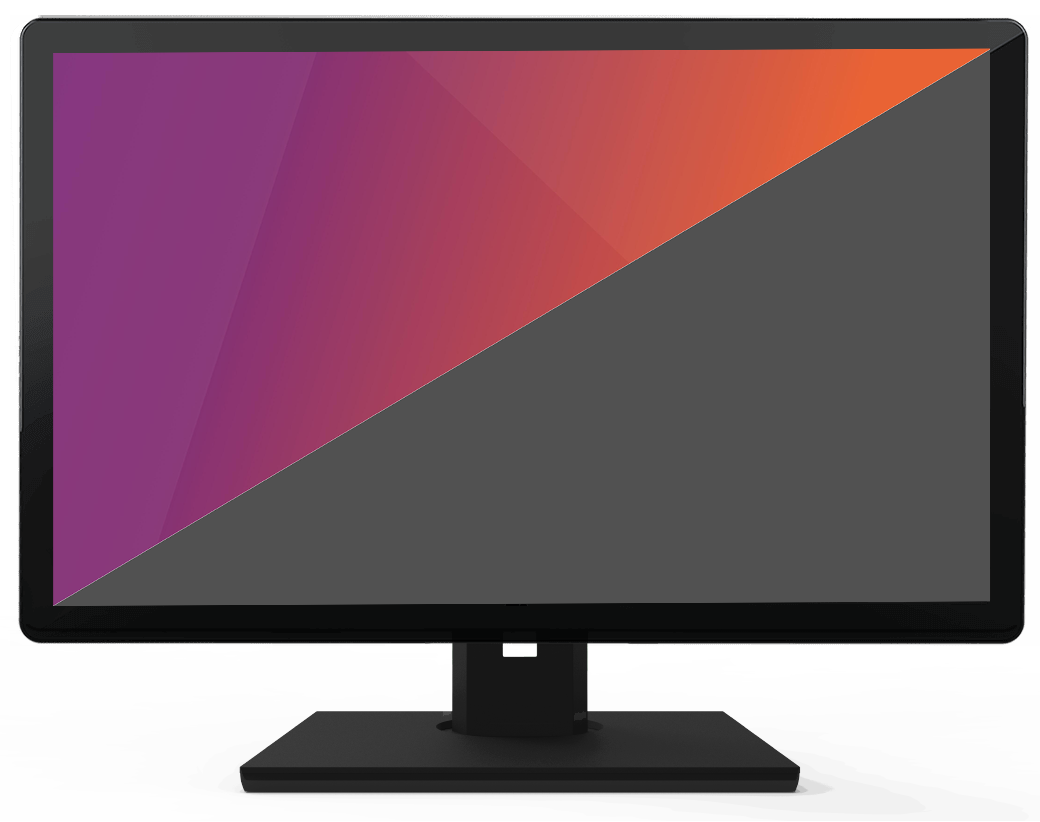

21.5" DeskTop Touch Display M2176PW

Key features

  • TFT, 1920 x 1080
  • VGA ,DVI ,DP and HDMI input
  • Wide operating temperature
  • High brightness

Touch types

  • Project Capacitive Touch Screen(PCAP), Multi touch, IK06 protection, etc.
  • Infrared Touch Screen(IRTS), Multi touch, IK06 protection, etc.
  • Resistive Touch Screen(RTS), Multi touch, IK06 protection, etc.

Overview

M2176PW DeskTop Touch Display

The interactive 21.5-inch multi touch display m2176pw is characterized by panamch's use of high-performance projection

capacitive multi touch technology and complex bezel free display design to provide users with a truly uncompromising touch

experience. TheM2176pw provides interaction with an ultra fast response time of 5 milliseconds, enabling designers to

create a more natural, intuitive and sensitive multi-user experience than infrared and optical based systems. M2176pw has

enough versatility to be used in interactive digital signage, interactive tables and kiosks solutions, providing system

architects with high-performance, easy to integrate commercial displays to achieve innovative multi touch solutions.

Sophistication Meets Innovation

Panamich® takes interactive display technology to the next level by combining uncompromising multi-touch performance,

brilliant high-definition graphics, wide viewing angles and elegant product design into a fully-integrated, easy-to-use,

plug-and-play multi-touch desktop device



Multi-Touch Applications

PCT combines its industry-leading multi-touch technology that delivers an ultra-fast, accurate, and precise multi-touch

response, with a high-definition, wide viewing angle LCD, to create a multi-touch chassis for your next generation interactive

application. The rugged all steel frame and a highly-

Specifications

Display Details

LCD Panel              21.5 Inch TFT LCD

Display Colors           16.7M Colors

Pixel Pitch              247.95 (per one triad) ×247.95

Brightness              350 cd/m2 (nit) typical    with touch sensor (max.)   250 cd/m2 (nit) typical

Contrast Ratio            1000:1 typical

Viewing Angle            Horizontal/Vertical: 178 degrees Typical

Video Response Time    13 ms typical

Refresh Rate            60Hz

Control Type            OSD

Native Resolution        1920 x 1080

Touch Details
Number of Touch Points    5 points with palm rejection
Touch Point Speed        <5 milliseconds
Input Type               Finger, thin glove Operates with many of the leading conductive styli and active pens
Light Transmission          >87%
Touch Communication       USB
Accuracy                   >99% of true position
Operating System Support   Windows 10/7 / Linux / Mac /NeoKylin(  )

 Product Details
Operating Environment                0 to +50 degrees C, relative humidity, non-condensing 90%
Storage Environment                  -10 to +60 degrees C
Video Input                           DVI(1 interfaces),  HDMI(1 interfaces),  VGA(1 interfaces)
Audio                                Audio input
VESA Pattern                         100mm x100mm
Power Supply                         Internal 110/220V AC Power Supply
