Touch Display Module

32" Touch Display Module

32" Touch Display Module. Part NO: MD-3200-001-01

Key features

  • TFT, 1920 x 1080
  • VGA and HDMI input
  • Wide operating temperature
  • High brightness

Touch types

  • Project Capacitive Touch Screen(PCAP)
  • Infrared Touch Screen(IRTS)

Overview

32" touch display module

Panamich offers touch display modules designed for integration into various devices and systems. These modules provide flexible solutions for OEM applications, embedded systems, and custom display solutions.

Touch display modules combine high-quality displays with advanced touch technology, offering easy integration and customization options. Perfect for industrial applications, kiosks, and embedded systems requiring reliable touch interfaces.

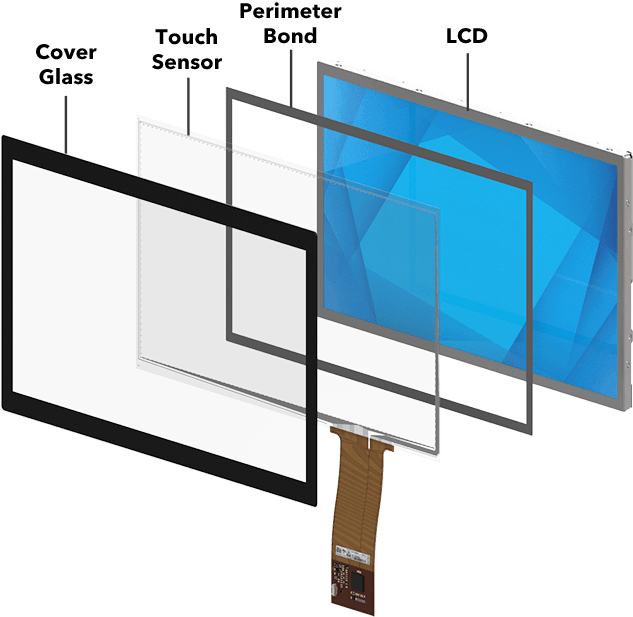

Panamich’s touch display modules pair high-performance LCDs with proven touch technology in a compact, all-in-one embedded solution. Built for durability and seamless integration, they feature chemically strengthened cover glass, anti-glare treatment, and are available in sizes from 5 to 32 inches. Designed for demanding environments, Panamich’s modules deliver superior optical clarity, responsive touch performance, and strong EMI protection across medical, industrial, and commercial applications.

Specifications

Functional Specifications



Display Details

Model

MD-3200-001-01

Color

Black

Active Display Area

698.4 mm x 392.85 mm

LCD Technology

Active matrix TFT LCD

Diagonal Size

31.5" / 800.1mm

Aspect Ratio

16:9

Native Resolution

1920 x 1080

Other supported resolutions

1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB, 1920 x 1080 50 60Hz

Number Of Colors

16.7 million

Brightness (Typical)

LCD Panel: 450 nits; with Touch Panel: PCAP: 350 nits

Response Time (Tr + Tf) (Typical)

12 msec

Viewing Angle (Typical)

Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total

Contrast Ratio (Typical)

3000:1

Touch Details

Number of Touch Points

10 points with palm rejection

Touch Point Speed

<12 milliseconds

Input Type

Finger, thin glove    Operates with many of the    leading conductive styli and active pens

Light Transmission

<12 milliseconds

Accuracy

>99% of true position

Touch Refresh Rate

<10ms for up to 10

Product Details

On-Screen Display (OSD)

Accessible through switches along the bottom.

Controls: Menu, Up, Down, Select, Power

Settings:  Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness,

Recall Defaults, Information

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Touch input interface

USB Type B

Video input interface

DisplayPort（DP）;HDMI;DVI;VGA

Power

110-200V AC Power

Audio

5w + 5w @ 8Ω

Mounting Options

Please refer to the drawing

Operating Environment

0 to +50 degrees C, relative humidity,

non-condensing 85%

Storage Environment

 -10 to +60 degrees C

Operating System Support

Windows 11 / 10 /8 / 7 / Vista / Linux /  Mac / Kylin OS / UOS

Dimensions (W x D x H)

Without Stand : 750.7mm x 445.07mm x 56.7mm

Shipping Box Dimensions

850mm x 550mm x 200 mm

Weight

Unpackaged:About 14.5kg; Packaged: About 19.8 kg

MTBF

50,000 hours demonstrated

Warranty

1 years

What’s in the Box

Touch monitor,  VGA cable, HDMI cable,Touch USB cable,DC power adapter, EU Power cable
