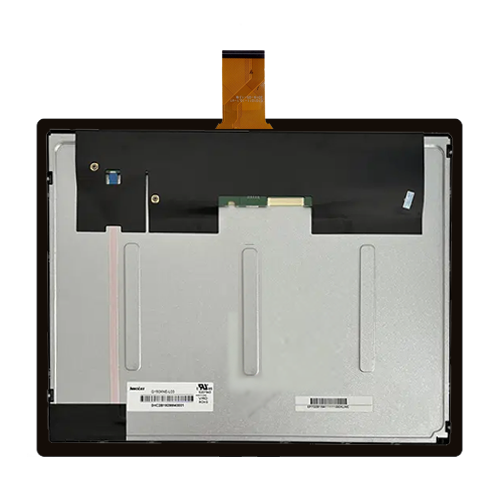

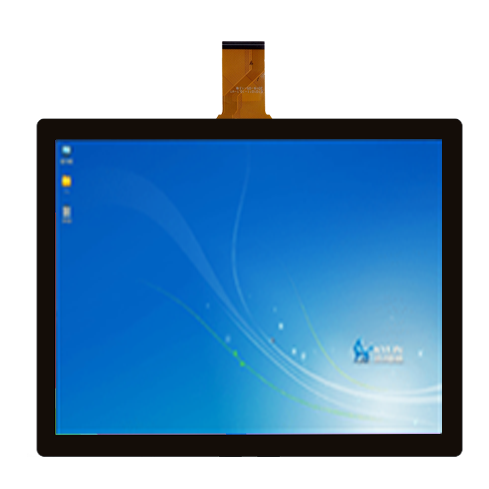

19.0" Touch Display Module

Functional Specifications

Display Details

Model

MD-1900-001-01

Color

Black

Active Display Area

376.32mm x 301.056 mm

LCD Technology

Active matrix TFT LCD

Diagonal Size

19.0" / 482.6mm

Aspect Ratio

5:4

Native Resolution

1280x 1024

Other supported resolutions

800 x 600 56, 60Hz, 1024 x 768 60Hz, 1280 x 1024 60Hz

Number Of Colors

16.7 million

Brightness (Typical)

LCD Panel: 250 nits; with Touch Panel: PCAP: 200 nits

Response Time (Tr + Tf) (Typical)

12 msec

Viewing Angle (Typical)

Horizontal: 85°/85° or 170° total; Vertical: 80°/80° or 160° total

Contrast Ratio (Typical)

1000:1

Touch Details

Number of Touch Points

10 points with palm rejection

Touch Point Speed

<12 milliseconds

Input Type

Finger, thin glove    Operates with many of the    leading conductive styli and active pens

Light Transmission

<12 milliseconds

Accuracy

>99% of true position

Touch Refresh Rate

<10ms for up to 10

Product Details

On-Screen Display (OSD)

Accessible through switches along the bottom.

Controls: Menu, Up, Down, Select, Power

Settings:  Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness,

Recall Defaults, Information

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Touch input interface

USB Type B

Video input interface

VGA;HDMI

Power

Monitor input power connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter);

Monitor input power signal specifications: 12VDC +/- 5%; Adapter input voltage range: 100-240VAC, 50/60Hz;

Power Consumption (Typical with monitor + AC/DC adapter): ON: 28W; SLEEP: 0.45W; OFF: 0.38W

Power Consumption (typical)

Monitor only - ON: 12.76W, SLEEP: 1.33W, OFF: 0.30W

Mounting Options

Please refer to the drawing

Temperature

Operating: 0°C to 40°C / 32°F to 104°F; Storage: -20°C to 60°C / -4°F to 140°F

Humidity (non-condensing)

Operating: 20%-80%; Storage: 10%-95% (38.7° maximum wet bulb temperature)

Operating System Support

Windows 11 / 10 /8 / 7 / Vista / Linux /  Mac / Kylin OS / UOS

Dimensions (W x D x H)

Without Stand : 414.44 mm x 348.98mm x 46.5 mm

Shipping Box Dimensions

520mm x 450mm x 220 mm

Weight

Unpackaged:About7.8 kg; Packaged: About 13.2 kg

MTBF

50,000 hours demonstrated

Warranty

1 years

What’s in the Box

Touch monitor,  VGA cable, Touch USB cable,DC power adapter, EU Power cable
